Ntse Lithium Hlau Phosphate Roj Teeb 48V 100Ah

QWW 48V 100AH ntse lithium roj teeb pob (LiFePo4) muaj cov cuab yeej ntse thiab qib siab BMS patent technology. Ntau qhov kev tiv thaiv rau qhov hluav taws xob, tam sim no, kub thiab luv luv muab cov neeg siv khoom siv hluav taws xob yooj yim thiab xis nyob.GEBC saib xyuas cov roj teeb lithium Los ntawm lub xov tooj ntawm tes APP, cov neeg siv khoom tuaj yeem tshawb xyuas lub roj teeb xwm txheej txhua lub sijhawm. Kev kuaj mob nyob deb yuav pab kom paub qhov laj thawj ntawm qhov teeb meem. Lub roj teeb siab ceev, me me, lub teeb yuag thiab txhim khu kev qha, zoo tagnrho rau cov tsheb qis, hluav taws xob siv tsheb, tsheb golf thiab forklifts.

Peb kuj muab 24V 48V 51.2V customized lithium hlau phosphate roj teeb nrog cov kev xaiv inverter sib txawv, txais tos hu rau peb!

QWW 48V 100Ah Intelligent Lithium Iron Phosphate Battery Technical Specifications

Nominal voltage	48V
Nominal Peev Xwm	100Ah @0.5C discharge current 25±2 degree
Rated Zog	4.8 KWG
Dimension	133 * 173 * 192 hli
Lub neej voj voog	4000 Cycles @ 0.2C Charging / Discharging,Until 80% Capacity
Max. nruam them tam sim no	100A
Max. nruam tawm tam sim no	100A
Max. them tam sim no	200A (1C tus nqi)
lav	2 xyoo
Kev tiv thaiv BMS	Over-charge, over-discharge, over-current, over-luv-circuit
Charge Temperature	0 degree txog 45 degree (32℉ txog 113℉) @60 ± 25% txheeb ze humidity
Tshem Tawm Kub	-20 degree txog 60 degree ({2}}℉ txog 140℉) @60 ± 25% txheeb ze humidity
Roj teeb Configuration	16S1P 3.2V100AH Li-FePO4 roj teeb
Kev sib txuas lus Interface	CAN (Default) lossis RS485 lossis RS232
Net Nyhav (ib leeg xwb)	48kg ua

Cov yam ntxwv zoo ntawm QWW 48V 100AH 4.8KWH Customized Zog Cia

● Ultra-compact thiab lub teeb yuag, 1/3 me dua li cov roj ntsha lead-acid thiab 2/3 sib zog dua li cov roj ntsha lead-acid.

● Built-in ntse BMS, nrog roj teeb dhau-voltage, dhau-tam sim no, kub, luv Circuit Court thiab lwm yam kev tiv thaiv kev ua haujlwm.

● Cov roj teeb tuaj yeem raug saib xyuas kom them nqi ntxiv, them thiab tawm tam sim no, voltage, kub thiab lwm yam ntaub ntawv.

● Kev ua haujlwm tawm tau zoo

● Kev sib txuas lus: CAN/RS485

● Kev kuaj mob roj teeb yuam kev

● Roj teeb yuam kev kuaj lub roj teeb lub neej dhau 2500 cycles

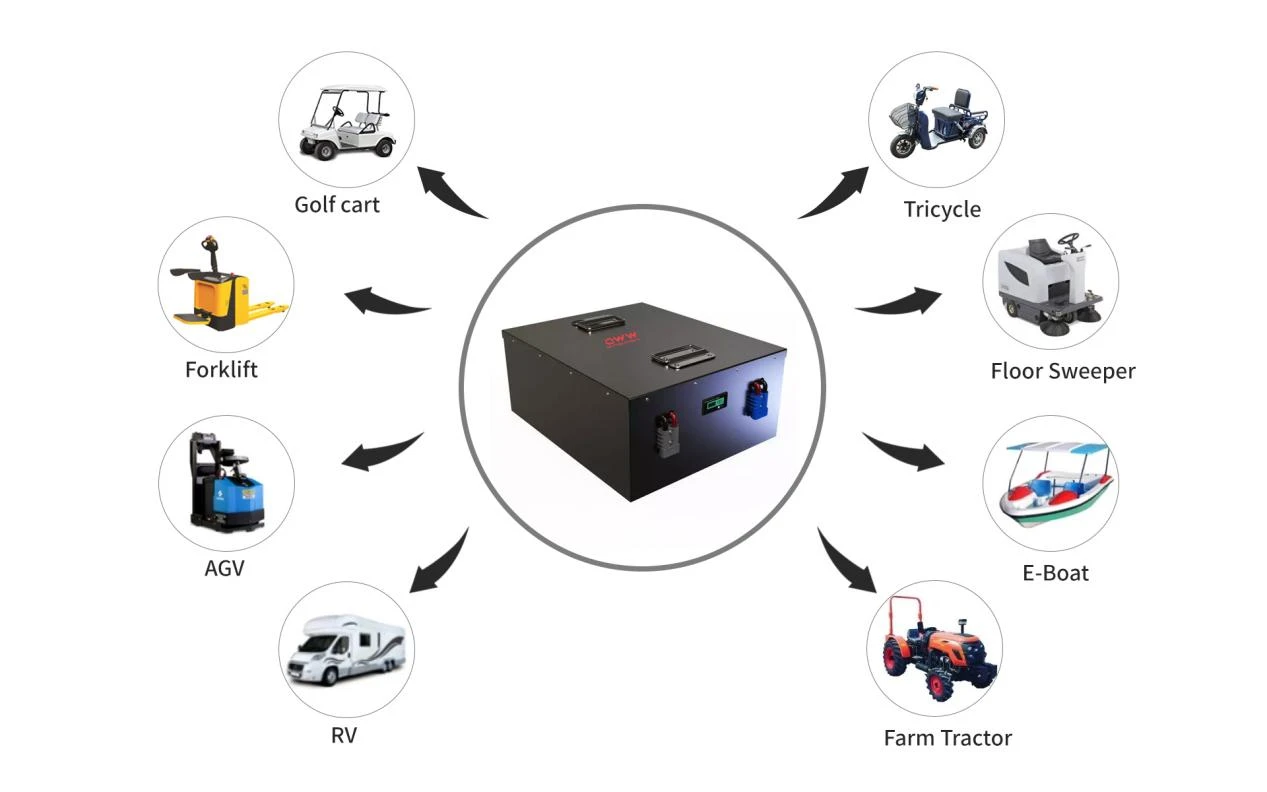

QWW Customized Energy Storage 4.8KWH Main Application Scenarios

product-1267-792

FAQ

Q: LiFePO4 sib sib zog nqus voj voog roj teeb yog dab tsi?

A: Cov roj teeb lithium hlau phosphate muaj peev xwm ua rau lub voj voog sib sib zog nqus tab sis tib lub sijhawm tswj kev ua haujlwm ruaj khov. Lub voj voog sib sib zog nqus yog lub roj teeb uas tsim los tsim cov khoom siv hluav taws xob ruaj khov nyob rau lub sijhawm txuas ntxiv, tso tawm lub roj teeb ntau heev.

Q: Kuv puas xav tau BMS rau LiFePO4 hlwb?

A: Lub Roj Teeb Tswj Kev Tswj Xyuas (BMS) yog ib qho tseem ceeb ntawm cov roj teeb LiFePO4. Nws ua kom muaj kev nyab xeeb thiab ua haujlwm tau zoo ntawm lub roj teeb los ntawm kev saib xyuas cov tsis tseem ceeb, tiv thaiv kev tshaj tawm, tshaj tawm, thiab kub dhau, thiab ntsuas cov hlwb kom muaj kev ua haujlwm zoo.

Q: Dab tsi yog qhov siab tshaj plaws them tam sim no rau LiFePO4 roj teeb?

A: Nws raug nquahu kom khaws cov roj teeb tam sim no ntawm LiFePO4 hauv qab no 0.5C, vim tias muaj cua sov dhau los ntawm kev them nyiaj sai tuaj yeem ua rau lub roj teeb tsis zoo. Txawm hais tias qhov txwv tam sim no rau koj lub roj teeb yog 1C lossis siab dua. Lead-acid roj teeb feem ntau pom zoo kom them nqi qis dua 0.2C.

Q: Yuav nrhiav dab tsi thaum yuav LiFePO4 roj teeb?

A: Nws yog ib qho tseem ceeb uas yuav tsum nco ntsoov qee yam hauv siab thaum piv LiFePO4 roj teeb. Cov no suav nrog Kev Tswj Xyuas Roj Teeb (BMS), qib cell, thiab lawv nyob ntev npaum li cas. Lub roj teeb lithium txhim khu kev qha yog kev thaj yeeb ntawm lub siab (thiab tom qab ntawd qee qhov).

Cim npe nrov: Tuam Tshoj qww customized 48v 100ah li-fepo4 rau golf laub roj teeb thiab tricycles manufacturers, hoobkas
