QWW muaj Rack Mounted lithium hlau phosphate roj teeb hauv 10 kWh, 15 kWh, 20 kWh, thiab 25 kWh muaj peev xwm, tso cai rau koj khaws lub hnub ci txaus thiab lub zog koj lub tsev nrog kev sib raug zoo nrog feem ntau ntawm cov inverters ntawm lub khw, thiab txo koj cov hluav taws xob ntau. daim nqi.

QWW 25KWH Rack Mounted Energy Storage Specifications

Nominal voltage	51.2V
Nominal Peev Xwm	100Ah @0.5C discharge current 25±2 degree
Rated Zog	5.12 KWG
Dimension	440 * 430 * 177 hli
Lub neej voj voog	4000 Cycles @ 0.2C Charging / Discharging,Until 80% Capacity
Tsis tu ncua Charge / Discharge Current (A)	100A @ 25 ± 2 degree (pom zoo)
Charge Temperature	0 degree txog 45 degree (32℉ txog 113℉) @60 ± 25% txheeb ze humidity
Tshem Tawm Kub	-20 degree txog 60 degree ({2}}℉ txog 140℉) @60 ± 25% txheeb ze humidity
Roj teeb Configuration	16S1P
Kev sib txuas lus Interface	CAN (Default) lossis RS485 lossis RS232
Net Nyhav (ib leeg xwb)	Txog 45 kg

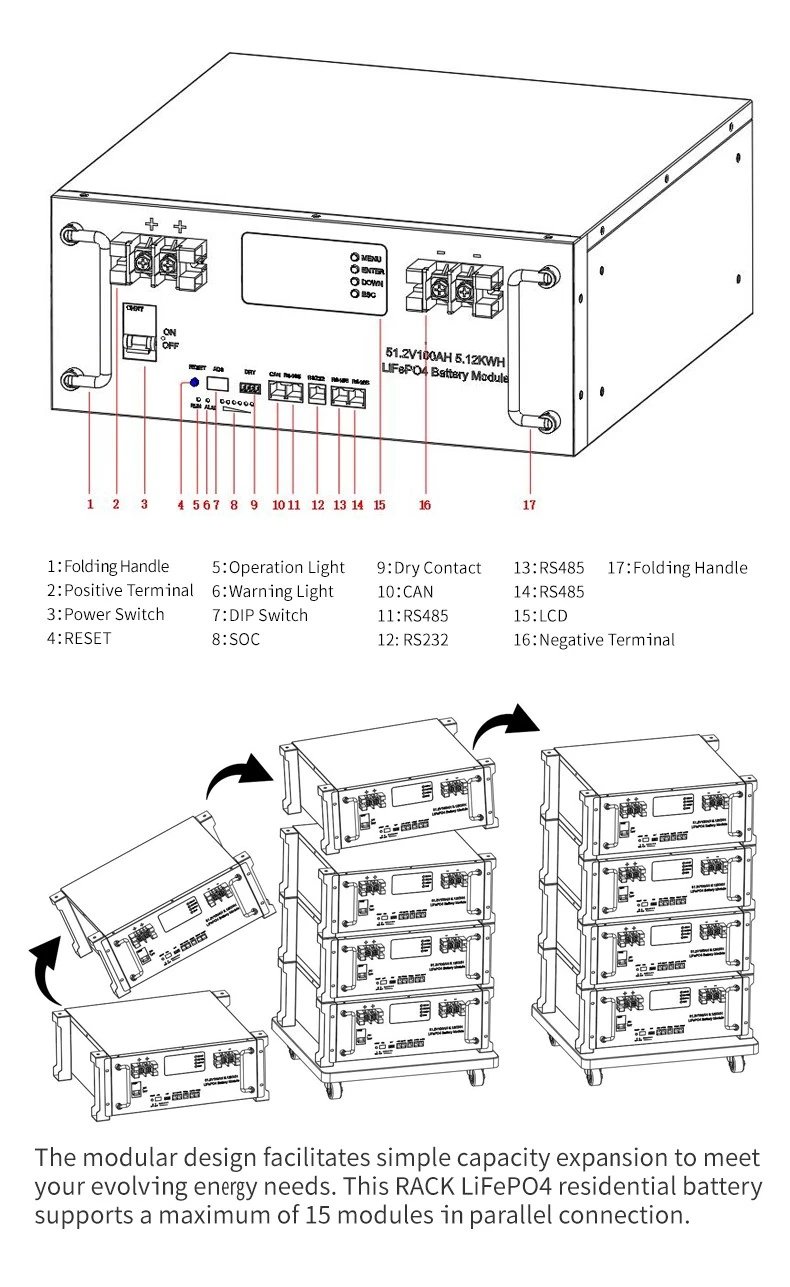

product-790-1287

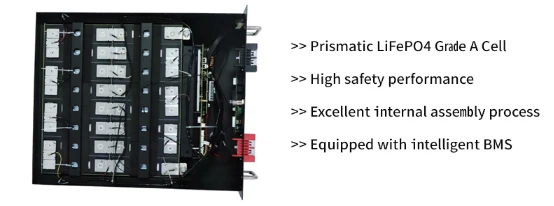

product-554-206

QWW 25KWH Rack Mounted Zog Cia Qhov Zoo thiab Nta

● Kev ruaj ntseg siab ua hauv BMS ntau yam kev tiv thaiv, kev sib txuas lus muaj nuj nqi los saib xyuas cov ntaub ntawv roj teeb hauv lub sijhawm

● Kev tsim kho-dawb tsim, haum rau cov khoom sib txuas lus

● Tsis tshua muaj kev tiv thaiv sab hauv thiab cov roj teeb zoo ruaj khov

● Long service life, 80%DOD deep discharge battery cycle life >4000 x

● Cov roj teeb uas muaj peev xwm sib npaug sib npaug rau cov ntawv thov muaj peev xwm

● Qhov loj me thiab lub teeb yuag. Nws tuaj yeem ntsia tau rau ntawm RVs kom yooj yim mus pw hav zoov

● Lub khib-mounted tsim tso cai rau ib los yog ntau tshaj hnub ci lithium roj teeb rau mounted nyob rau hauv ib lub khib kom txuag chaw, thiab lub khib-mounted lub zog cia roj teeb no txhawb mus txog 15 roj teeb modules nyob rau hauv parallel.

● QWW tsim cov khoom kom phim 98% ntawm cov inverter hom ntawm lub khw. Thov hu rau peb cov neeg ua haujlwm muag khoom kom paub ntau ntxiv.

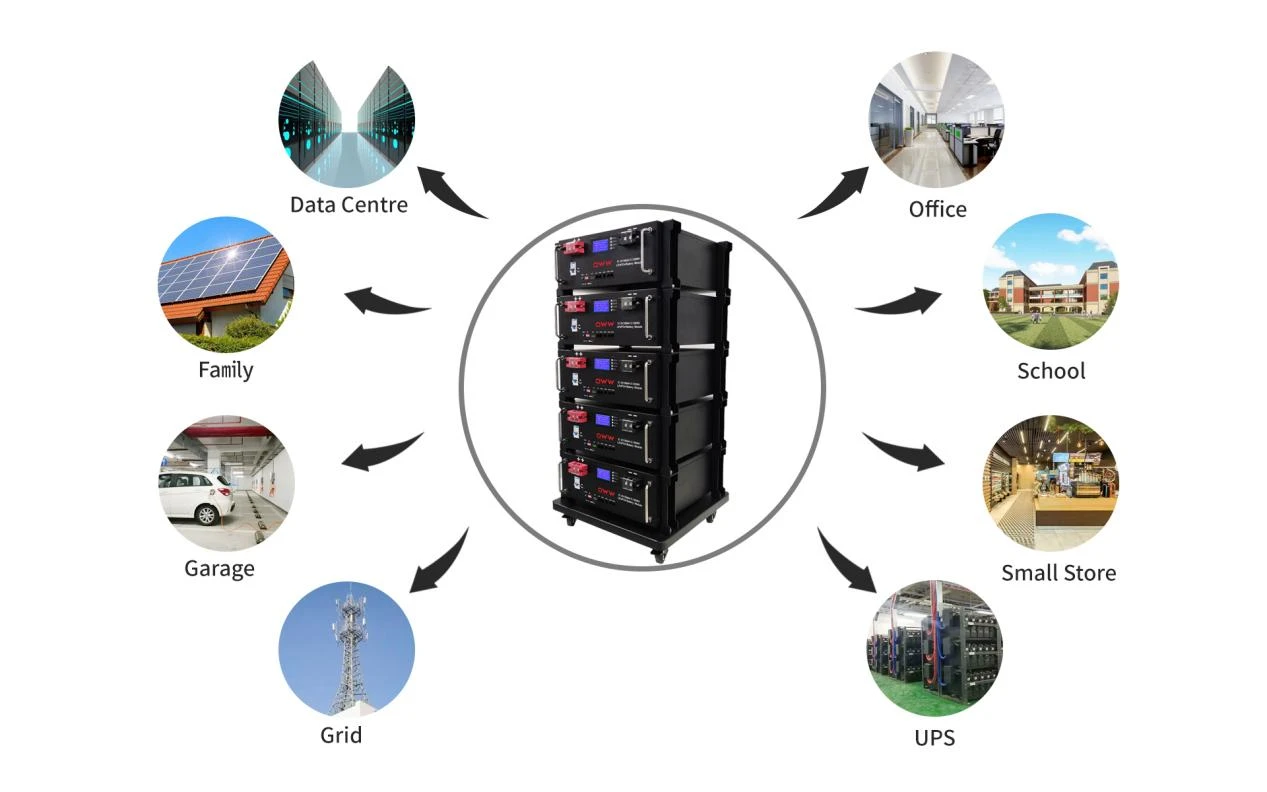

QWW 25KWH Rack Mounted Energy Storage Battery Main Application Scenarios

product-1267-792

product-1267-273

FAQ

Q: Lub roj teeb lithium 48V 100Ah ntev npaum li cas?

A: Lub neej ua haujlwm ntev ntawm 10 ~ 15 xyoo; Inbuilt BMS ntau yam kev tiv thaiv kev ruaj ntseg; Cov roj teeb zoo lithium hlau phosphate, muaj kev nyab xeeb thiab txhim khu kev qha; Lub sijhawm them rov qab ntau dua, lub neej ntev dua, kev lag luam thiab kev tiv thaiv ib puag ncig.

Q: Lub roj teeb 48V 200ah yuav kav ntev npaum li cas?

A: Yuav ua li cas xam cov roj teeb muaj peev xwm xav tau rau koj lub tsev: 48V 200ah roj teeb yog sib npaug rau 9.8 kWh lossis ib ncig ntawm 9600 watts. Qhov no txaus los khiav cov khoom siv hauv tsev tseem ceeb xws li lub tub yees, rau lub teeb pom kev zoo, TV, thiab lub laptop charger rau 3.9 teev.

Q: Dab tsi yog qhov siab tshaj plaws them tam sim no rau 48V roj teeb?

A: Ib qho nruab nrab amp tso zis 48 volt charger yuav nyob rau hauv thaj tsam ntawm 10 amps los yog li ntawd, thiab siv rau ntau daim ntawv thov siv li ntawm 100 amp teev roj teeb thiab nce, los yog daim ntawv thov nrog ib tug tas li amp load (lub hwj chim mov daim ntawv thov).

Q: Puas yog LiFePO4 zoo dua lithium-ion?

A: Kev nyab xeeb. LiFePO4 roj teeb feem ntau suav hais tias muaj kev nyab xeeb dua ntawm ob vim lawv cov chemistry, uas tsis tshua muaj cua sov lossis tawg. Los ntawm qhov sib txawv, thaum cov roj teeb lithium-ion feem ntau muaj kev nyab xeeb thaum siv kom raug, lawv tau paub tias muaj cua sov thiab ntes hluav taws yog tias lawv puas lossis ua tsis raug.
