QWW 51.2V 100AH yog lithium hlau phosphate lithium-ion roj teeb nrog lub peev xwm ntawm 5.12kwh thiab qis voltage ntawm 100Ah, uas yog sib xws nrog feem ntau ntawm cov inverters ntawm lub khw. Nws yog tsuas yog siv rau hauv tsev lossis sab nraum zoov PV zog cia.

Peb kuj muab 24V 48V 51.2V kev cai ua lithium hlau phosphate roj teeb. Tuaj thiab tiv tauj peb!

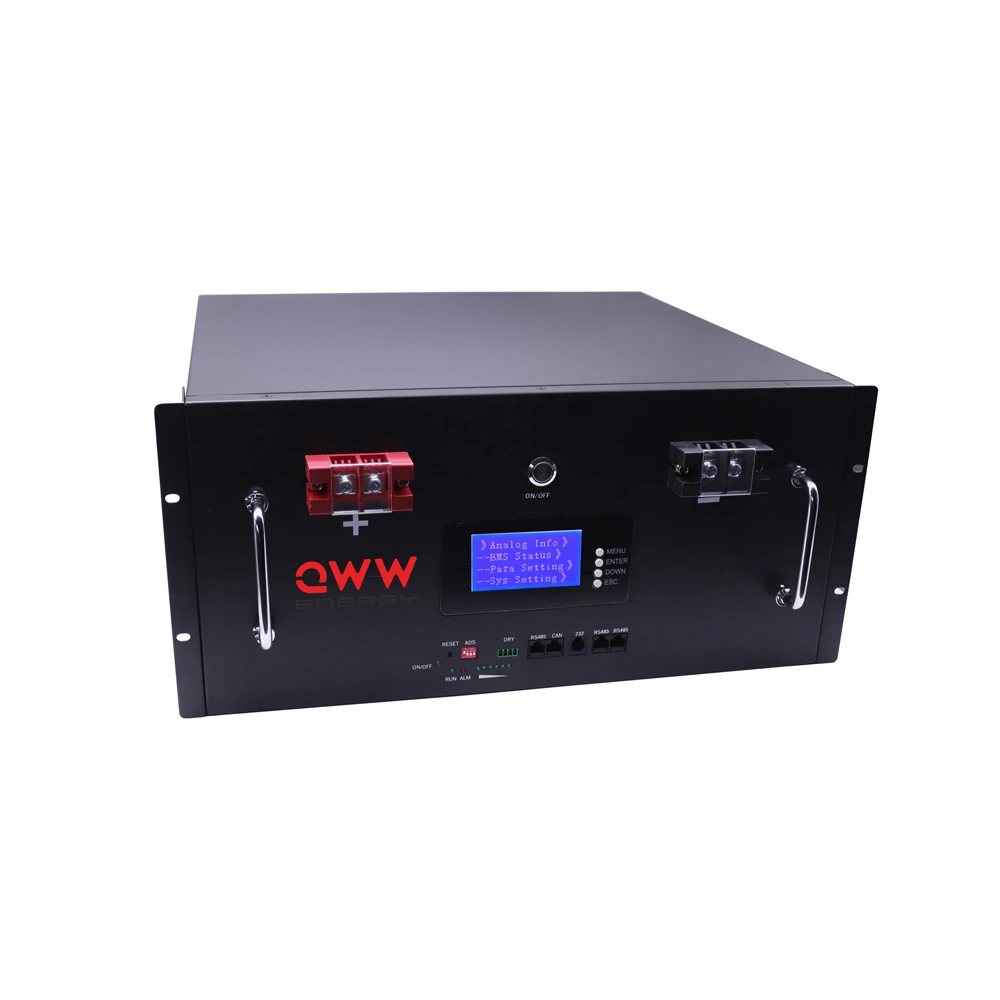

QWW 51.2V 200Ah Rack Mounted Zog Cia Specifications

product-1000-1000

Nominal voltage	51.2V
Nominal Peev Xwm	100Ah @0.5C discharge current 25±2 degree
Rated Zog	5.12 KWG
Dimension	440 * 440 * 177 hli
Lub neej voj voog	4000 Cycles @ 0.2C Charging / Discharging,Until 70% Capacity
Tsis tu ncua Charge / Discharge Current (A)	100A @ 25 ± 2 degree (pom zoo)
Charge Temperature	0 degree txog 45 degree (32℉ txog 113℉) @60 ± 25% txheeb ze humidity
Tshem Tawm Kub	-20 degree txog 60 degree ({2}}℉ txog 140℉) @60 ± 25% txheeb ze humidity
Roj teeb Configuration	16S1P
Kev sib txuas lus Interface	CAN (Default) lossis RS485 lossis RS232
Net Nyhav (ib leeg xwb)	Txog 47 kg

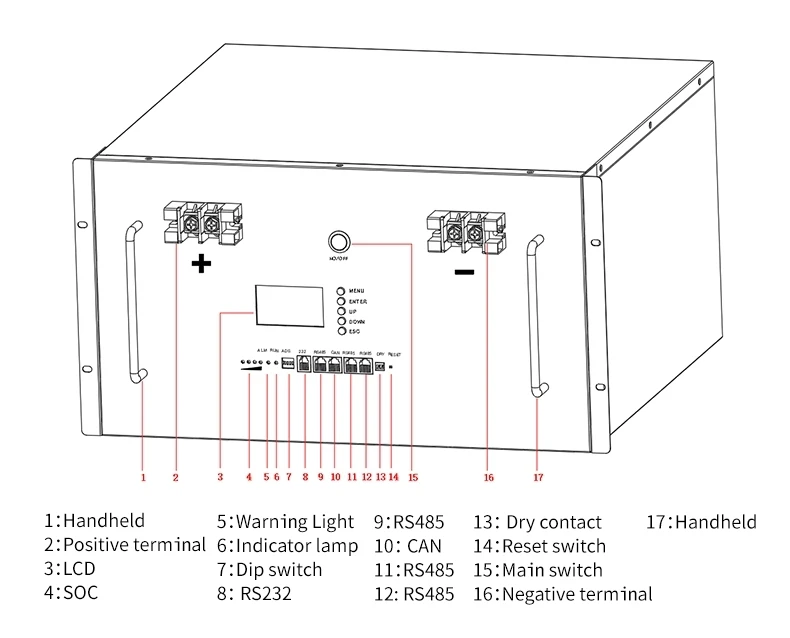

product-790-638

Cov yam ntxwv zoo ntawm QWW 51.2V 100Ah Rack Mounted Battery

● Kev nyab xeeb siab ua-hauv BMS ntau yam kev tiv thaiv, kev sib txuas lus ua haujlwm ntawm lub sijhawm saib xyuas cov ntaub ntawv roj teeb

● Kev tsim kho tsis pub siv rau hauv cov khoom sib txuas lus

● Tsis tshua muaj kev tiv thaiv sab hauv, roj teeb zoo ruaj khov

● Lub neej ua haujlwm ntev, 80% DOD qhov tob ntawm kev tawm roj teeb lub neej> 4000 zaug

● Lub peev xwm siab, cov roj teeb sib npaug rau cov ntawv thov muaj peev xwm

● Yog tias ib lub roj teeb ib pob khaws cov khoom siv hluav taws xob tsawg thiab tsis tuaj yeem ua tau raws li qhov xav tau ntawm hluav taws xob, lub kaw lus tuaj yeem nthuav dav los ntawm kev sib txuas ntau lub roj teeb uas tsis muaj hluav taws xob nyob rau tib lub sijhawm. QWW 51.2V Rack Mounted Battery txhawb nqa mus txog 16 lub roj teeb modules nyob rau hauv parallel kom tau raws li qhov xav tau ntawm lub zog loj.

● QWW tsim cov roj teeb uas sib haum nrog 98% ntawm cov inverters hauv khw.

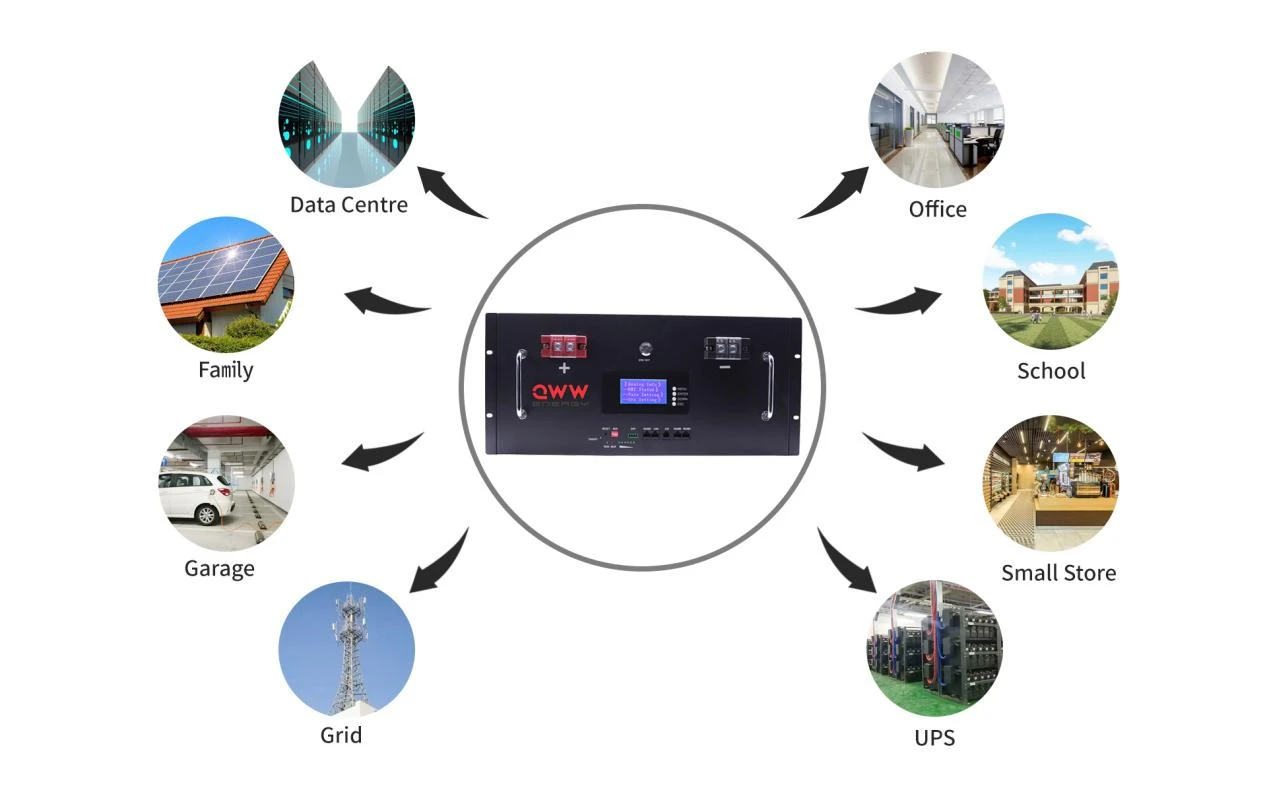

QWW 51.2V 100AH Rack Mounted Energy Storage Battery Main Application Scenarios

product-1267-792

product-1267-273

FAQ

Q: Puas yog 52V zoo dua 48V?

A: Qhov twg zoo dua: 48V lossis 52V? Qhov sib txawv loj tshaj plaws hauv cov roj teeb voltages tshwm sim thaum lub roj teeb yog li ib nrab tso tawm. Thaum lub sijhawm ntawd, rau lub roj teeb 48V, lub zog poob tseem ceeb tshwm sim. Lub roj teeb 52V yuav tsis ntsib tib lub zog poob ntawm qhov chaw ib nrab, ua rau nws xaiv zoo dua.

Q: Puas yog nws ua tau kom tag nrho cov roj teeb LiFePO4?

A: Cov roj teeb LiFePO4 tuaj yeem raug tso tawm kom nyab xeeb rau 100% qhov tob ntawm kev tso tawm (DOD) yam tsis muaj kev puas tsuaj rau lawv.

Q: Dab tsi yog qhov teeb meem ntawm LiFePO4 roj teeb?

A: Feem ntau ua rau ua tsis tiav ntxov ntawm LiFePO4 hlwb yog overcharging thiab over-discharging. Txawm tias ib qho tshwm sim tuaj yeem ua rau muaj kev puas tsuaj mus tas li rau ntawm tes, thiab kev siv tsis raug cai yuav tsis muaj qhov lav.

Q: Qhov twg zoo dua LiFePO4 lossis lithium roj teeb?

A: Puas yog LiFePO4 zoo dua lithium ion? Lub roj teeb LiFePO4 muaj ntug ntawm lithium ion, ob qho tib si ntawm lub neej voj voog (nws kav ntev dua 4-5x), thiab kev nyab xeeb. Qhov no yog qhov txiaj ntsig tseem ceeb vim tias cov roj teeb lithium ion tuaj yeem ua kom sov thiab txawm tias hluav taws, thaum LiFePO4 tsis ua.
