Main Feature
1. Model: QWW 12V 300Ah
2. Xov tooj ntawm tes: LiFePO4
3. Lub zog muaj peev xwm: 3840Wh
4. System Voltage: Nominal voltage 12.8V, ua hauj lwm voltage ntau (10-14.6V)
5. Series-parallel kev them nyiaj yug: kev txhawb nqa rau ib txhij series-parallel kev twb kev txuas, mus txog 4 series thiab 4 parallel kev twb kev txuas
6. Lead-acid roj teeb hloov
7. Cov hmoov lead-acid hloov lithium roj teeb feem ntau tuaj yeem siv rau hnub ci txoj kev teeb, RVs, tsheb golf, yachts, nkoj, hnub ci zog cia rau hauv tsev, neeg hlau, thiab lwm yam.
QWW 12.8V 300AH Lead Acid Replacement Battery Technical Specification
|
Nominal voltage |
12.8V |
|
Nominal Peev Xwm |
300 AW |
|
Rated Zog |
3840 wb |
|
Dimension |
522 * 240 * H218mm / customized |
|
Maximum pulse Current |
600A(<3S) |
|
Tshem Tawm Tawm Tawm Voltage |
10.0V |
|
Charge Voltage |
14.6V |
|
Standard Charge Current |
7A ( 0.2C) |
|
Internal Resistance |
<20mΩ |
|
Khoom siv |
ABS |
|
Qhov hnyav |
Kwv yees li. 26, 1kq |
|
Lub sijhawm lav |
3 xyoo warranty, thiab 5 xyoos txwv kev saib xyuas |
|
Kev tso tawm tus kheej |
Tsawg dua lossis sib npaug li 3.5% ib hlis ntawm 25 degree |
|
Kev kho kom haum |
Logo, Loj, Cov ntaub ntawv OEM muaj |
|
Cell / hlua |
4S1P, Cylindrical Cell |
|
Lub neej voj voog |
2500-4000 Cycles @ 0.2C Charging / Discharging, Until 70% Capacity |
|
Charge Temperature |
0 degree rau 45 degree (32℉ txog 113℉) @60 ± 25% Kwv tij Hmoob |
|
Tshem Tawm Kub |
-20 degree txog 60 degree ({2}}℉ txog 140℉) @60 ± 25% Kwv tij Hmoob |
|
Charge hom |
Ntawm {{0}} degree ~ 45 degree qhov kub thiab txias, them rau 14.6V ntawm qhov tam sim no ntawm 0.2C, thiab tom qab ntawd hloov mus tas li nrog qhov hluav taws xob tas li ntawm 14.6V kom txog thaum tam sim no tsis ntau tshaj 0.02c ua |
Lub ntsiab feature ntawm QWW 12v 300ah lifepo4 roj teeb nrog LCD zaub:
* Peb-xyoo lav tsis muaj kev txhawj xeeb.
* Tshaj 4500 Lub voj voog ntawm 80% DOD.
* Txhawb 4pcs * 12V roj teeb txuas hauv series kom tau 48V.
* Lub plhaub nrog LCD npo ncav cuag IP57 tiv thaiv ntsuas
* Rau hluav taws xob nyom mowers, tsheb golf, tsheb ua si, nqa rooj vag thiab maus taus.
* Ua kom koj lub zog muaj peev xwm siab tshaj plaws nrog 85% + Qhov tob ntawm Kev Tso Tawm (DOD).
* Kev txawj ntse tswj tsis siv neeg ntawm tes ntsuas qhov system txhim kho kev ua haujlwm
* Superior OEM kev tso cai rau koj cov kev xav tau ntawm cov ntaub ntawv / qhov loj / muaj peev xwm txawm tias hloov pauv xws li hloov koj cov roj teeb kua qaub rau LiFePO4.
* QWW lead-acid hloov roj teeb phim 98% ntawm inverters hauv khw
Peb 12V 200Ah Lead-acid hloov LFP roj teeb nrog LCD zaub
Peb cov roj teeb ua kua qaub hloov tau siv tau ntev, lub teeb yuag thiab cleverly tsim nrog ib tug built-in LCD zaub uas tuaj yeem ua kev cai tsim kom haum rau koj daim ntawv thov. Txhawb kev sib txuas thiab / lossis kev sib txuas. Peb muaj lwm yam 10AH-500AH lead acid hloov roj teeb muaj, thov hu rau peb kom paub meej ntxiv.

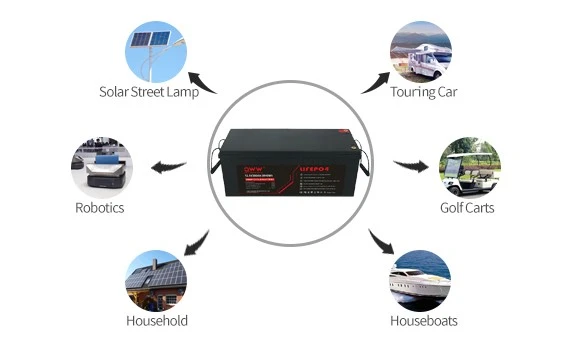

QWW 12.8V 300AH Lead Acid Replacement Battery Main Application Scenarios
FAQ
Q: Lub roj teeb lithium puas tuaj yeem siv los ua lub voj voog sib sib zog nqus?
Q: Muaj pes tsawg lub hnub ci vaj huam sib luag yuav tsum tau them 300Ah roj teeb?
Q: Hom roj teeb lub voj voog twg yog qhov zoo tshaj?
Cim npe nrov: 12v 300ah rv sib sib zog nqus voj voog roj teeb, Tuam Tshoj 12v 300ah rv sib sib zog nqus voj voog roj teeb manufacturers, hoobkas
