QWW 96V 100AH Smart Li-ion roj teeb pob (LiFePo4) muaj cov ntse thiab qib siab BMS patented technology.GEBC Saib Li-ion Roj Teeb Los ntawm xov tooj ntawm tes APP, cov neeg siv khoom tuaj yeem tshawb xyuas cov roj teeb nyob rau txhua lub sijhawm. Kev kuaj mob nyob deb yuav pab kom paub qhov laj thawj ntawm qhov teeb meem. High roj teeb ceev, me me, lub teeb yuag, txhim khu kev qha kev ua tau zoo.

Peb kuj muab 24V 48V 51.2V customized lithium hlau phosphate roj teeb nrog cov kev xaiv inverter sib txawv, txais tos hu rau peb!

QWW 96V 100Ah Intelligent Lithium Iron Phosphate Battery Technical Specifications

Nominal voltage	96V
Nominal Peev Xwm	100Ah @0.5C discharge current 25±2 degree
Rated Zog	9.6 kwm
Internal impedance (1kHz AC raug, m-)	Tsawg dua lossis sib npaug li 1mΩ (Ntawm 0.2C tus nqi, 2.0V txiav tawm)
Dimension	395 * 360 * 295 hli
Lub neej voj voog	4000 Cycles @ 0.2C Charging / Discharging,Until 80% Capacity
Max. nruam them tam sim no	100A
Max. nruam tawm tam sim no	100A
Max. mem tes tawm tam sim no	200A/10S
lav	2 xyoo
Kev tiv thaiv BMS	Over-charge, over-discharge, over-current, over-luv-circuit
Charge Temperature	0 degree txog 45 degree (32℉ txog 113℉) @60 ± 25% txheeb ze humidity
Tshem Tawm Kub	-20 degree txog 60 degree ({2}}℉ txog 140℉) @60 ± 25% txheeb ze humidity
Roj teeb Configuration	16S2P
Kev sib txuas lus Interface	CAN (Default) lossis RS485 lossis RS232
Net Nyhav (ib leeg xwb)	15kg ua

Cov yam ntxwv zoo ntawm QWW 96V 100AH 9.6KWH Customized Zog Cia

● Ultra-compact thiab lub teeb yuag, 1/3 me dua li cov roj ntsha lead-acid thiab 2/3 sib zog dua li cov roj ntsha lead-acid.

● Built-in ntse BMS, nrog roj teeb dhau-voltage, dhau-tam sim no, kub, luv Circuit Court thiab lwm yam kev tiv thaiv kev ua haujlwm.

● Cov roj teeb tuaj yeem raug saib xyuas kom them nqi ntxiv, them thiab tawm tam sim no, voltage, kub thiab lwm yam ntaub ntawv.

● Kev ua haujlwm tawm tau zoo

● Kev sib txuas lus: CAN/RS485

● Kev kuaj mob roj teeb yuam kev

● Roj teeb yuam kev kuaj lub roj teeb lub neej dhau 2500 cycles

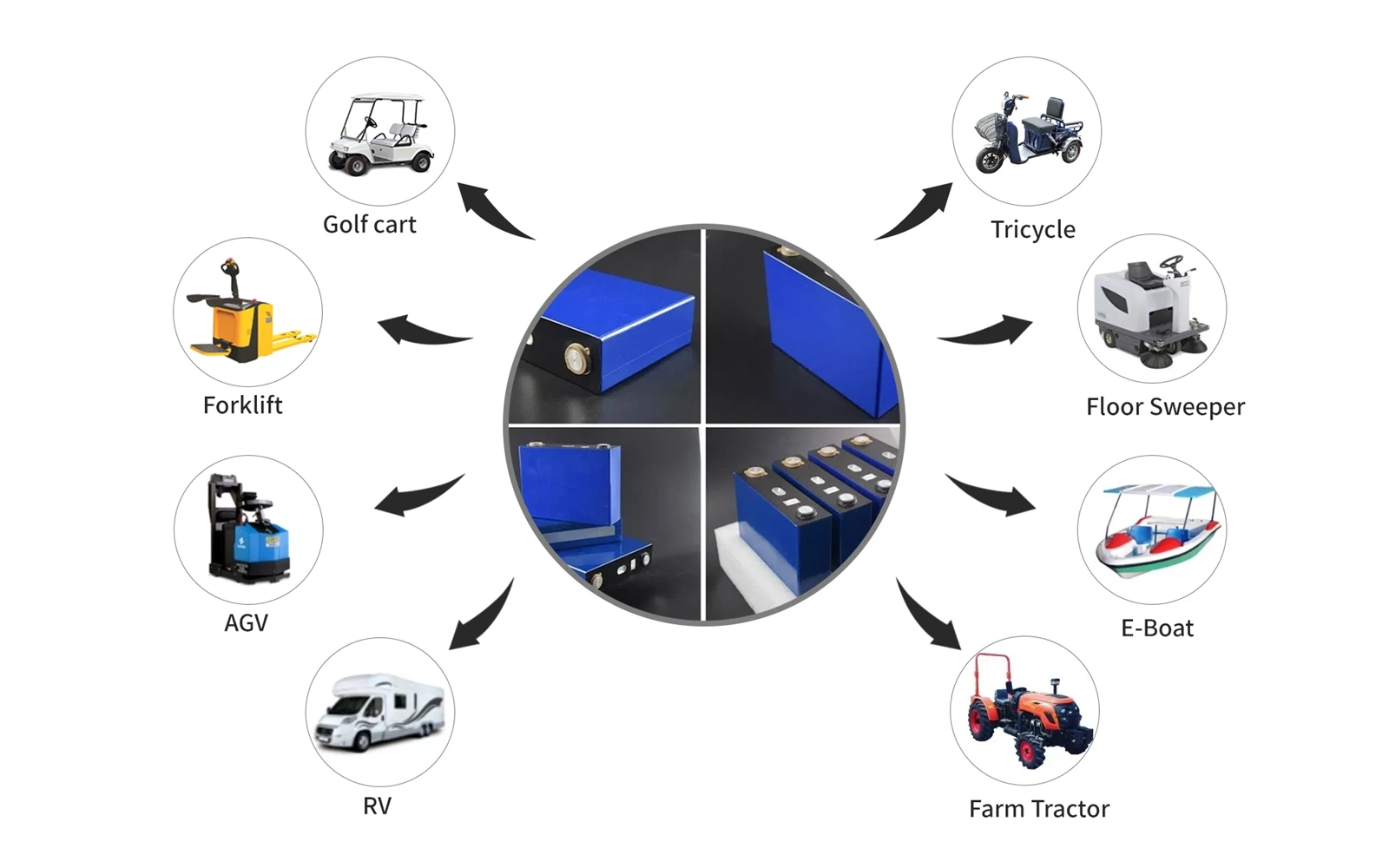

QWW Customized Energy Storage 9.6KWH Main Application Scenarios

product-1920-1200

FAQ

Q: LiFePO4 sib sib zog nqus voj voog roj teeb yog dab tsi?

A: Cov roj teeb lithium hlau phosphate muaj peev xwm ua rau lub voj voog sib sib zog nqus tab sis tib lub sijhawm tswj kev ua haujlwm ruaj khov. Lub voj voog sib sib zog nqus yog lub roj teeb uas tsim los tsim cov khoom siv hluav taws xob ruaj khov nyob rau lub sijhawm txuas ntxiv, tso tawm lub roj teeb ntau heev.

Q: Kuv puas xav tau BMS rau LiFePO4 hlwb?

A: Lub Roj Teeb Tswj Kev Tswj Xyuas (BMS) yog ib qho tseem ceeb ntawm cov roj teeb LiFePO4. Nws ua kom muaj kev nyab xeeb thiab ua haujlwm tau zoo ntawm lub roj teeb los ntawm kev saib xyuas cov tsis tseem ceeb, tiv thaiv kev tshaj tawm, tshaj tawm, thiab kub dhau, thiab ntsuas cov hlwb kom muaj kev ua haujlwm zoo.

Q: Dab tsi yog qhov siab tshaj plaws them tam sim no rau LiFePO4 roj teeb?

A: Nws raug nquahu kom khaws cov roj teeb tam sim no ntawm LiFePO4 hauv qab no 0.5C, vim tias muaj cua sov dhau los ntawm kev them nyiaj sai tuaj yeem ua rau lub roj teeb tsis zoo. Txawm hais tias qhov txwv tam sim no rau koj lub roj teeb yog 1C lossis siab dua. Lead-acid roj teeb feem ntau pom zoo kom them nqi qis dua 0.2C.

Q: Yuav nrhiav dab tsi thaum yuav LiFePO4 roj teeb?

A: Nws yog ib qho tseem ceeb uas yuav tsum nco ntsoov qee yam hauv siab thaum piv LiFePO4 roj teeb. Cov no suav nrog Kev Tswj Xyuas Roj Teeb (BMS), qib cell, thiab lawv nyob ntev npaum li cas. Lub roj teeb lithium txhim khu kev qha yog kev thaj yeeb ntawm lub siab (thiab tom qab ntawd qee qhov).
