ZB-P256100
Roj teeb ib sab ntawm tes: 3.2v 100ah 8s1p
Txhim Kho: phab ntsa-mounted (Xa mounting nkhaus)
Cov khoom no me me, lub teeb nyob rau hauv qhov hnyav thiab yooj yim rau nruab. Lub peev xwm tuaj yeem nthuav dav hauv parallel.
| Tus qauv | ZB-P256100 | ZB-P256200 |
| Kev qhia tshwj xeeb | 25.6v 100ah 2.56KH | 25.6V 200AH 5.12KHWH |
| Muaj pes tsawg | 8S1P | 8S2P |
| Ua Haujlwm Voltage Rang | 21.6V-28.8V | |
| Tso Tawm Lub Zog | Max: 2.5kw | Max: 5kw |
| Max them nqi | Max: 50A | Max: 100a |
| Max tso tawm tam sim no | Max: 100a | Max: 200a |
| Qho sau | LCD zaub screen | |
| Kev sib txuas lus interface | Rs485, Rs232, tau | |
| Tsim Lub Neej | 10 xyoo | |
| Mus ib ncig | 6000@25 /0.5C/80%DOD | |

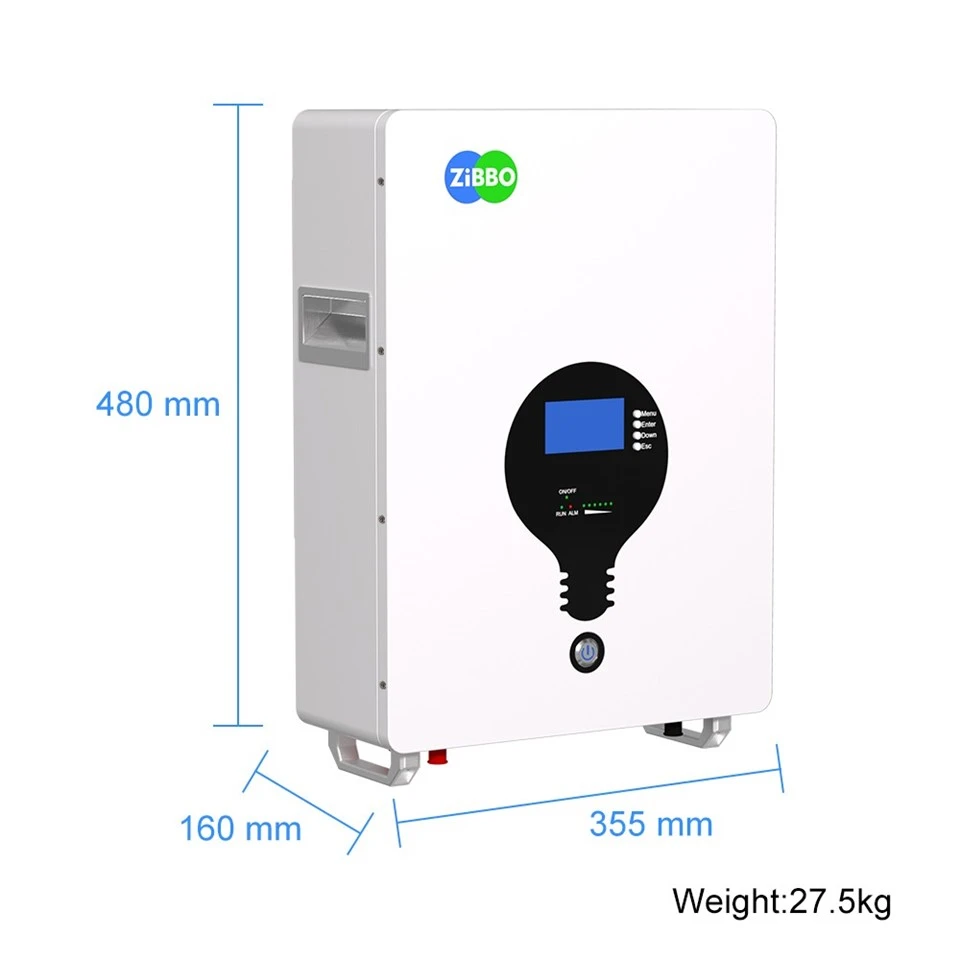

| Roj teeb loj (wxdxh) | L480 * W355 * H160mm | L600 * W400 * H460mm |
| Ntim qhov loj (WXDXH) | L560 * W435 * H280MM | L715 * W485 * H310mm |
| Qhov hnyav | 27.5Kg | 47.5Kg |
| Tag nrho qhov hnyav | 29.5Kg | 51. {0 kg |
| * Bracket txheem (tshem tawm) loj thiab qhov hnyav rau kev siv xwb. | ||
