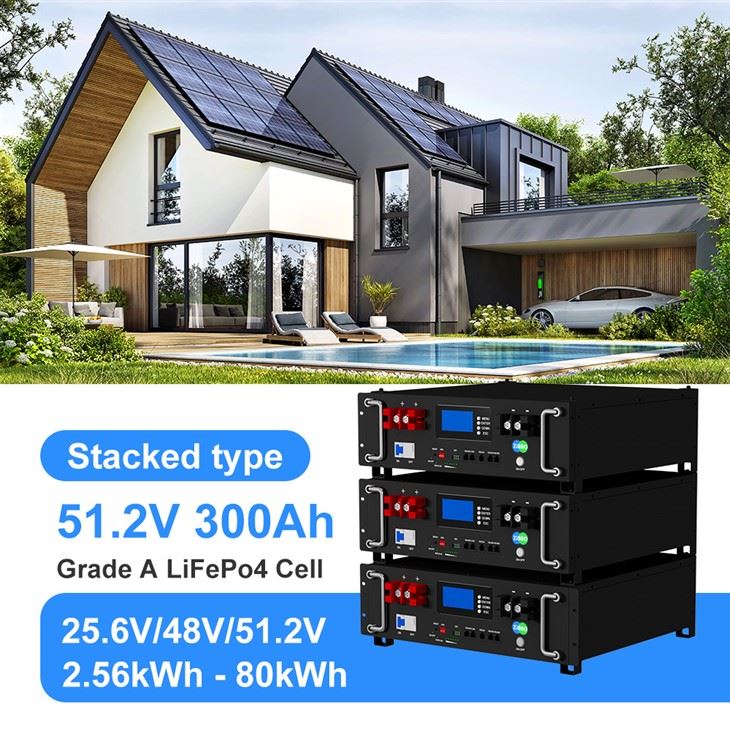

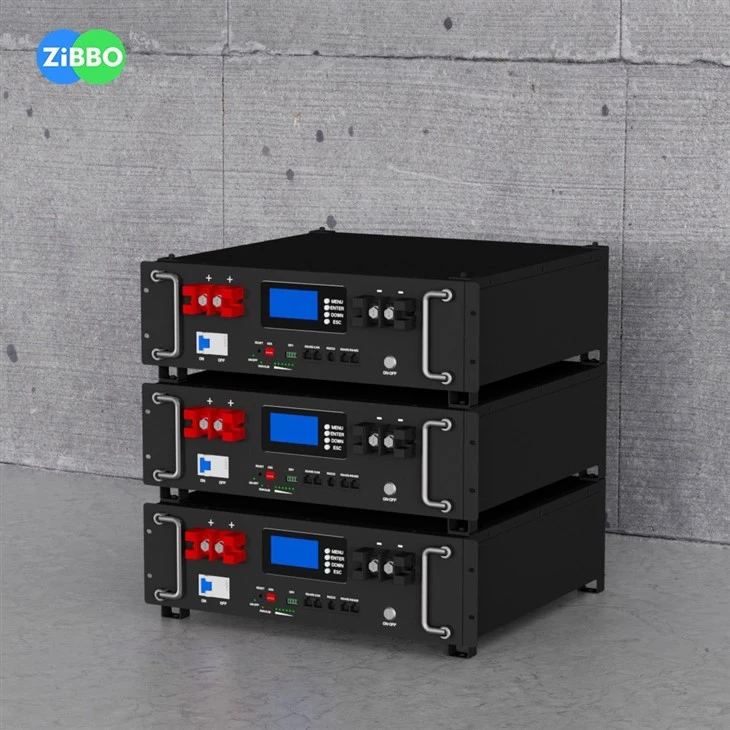

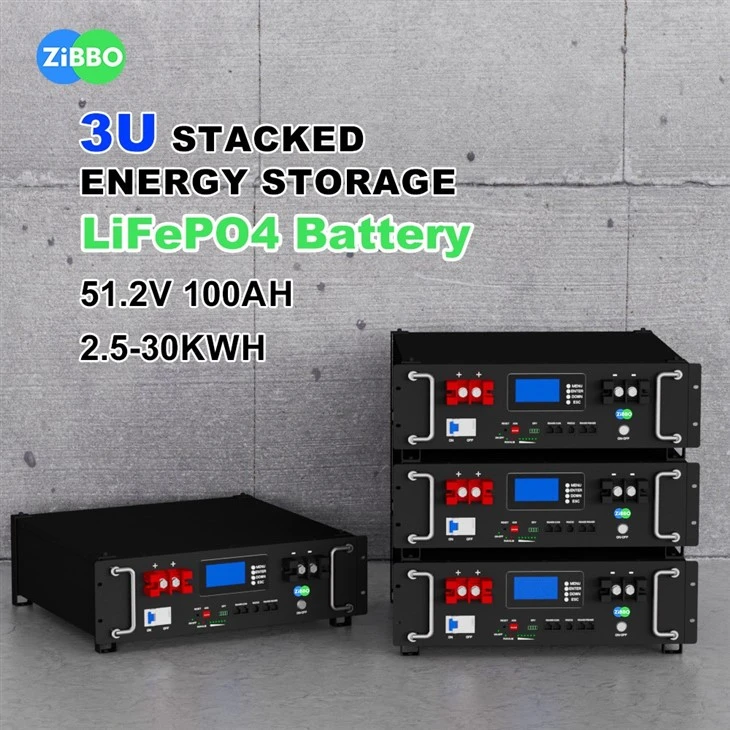

ZBPower Stackable 51.2V 300 Lithium Lithium Roj Teeb 6000 Cycle Lub Neej 15KWh

Cov txee no-Style Zog cia khoom roj teeb muaj cov qauv yooj yim thiab yooj yim heev rau kev teeb tsa yooj yim, muaj peb pawg ntawm 500 lithium iron phosphate roj teeb.

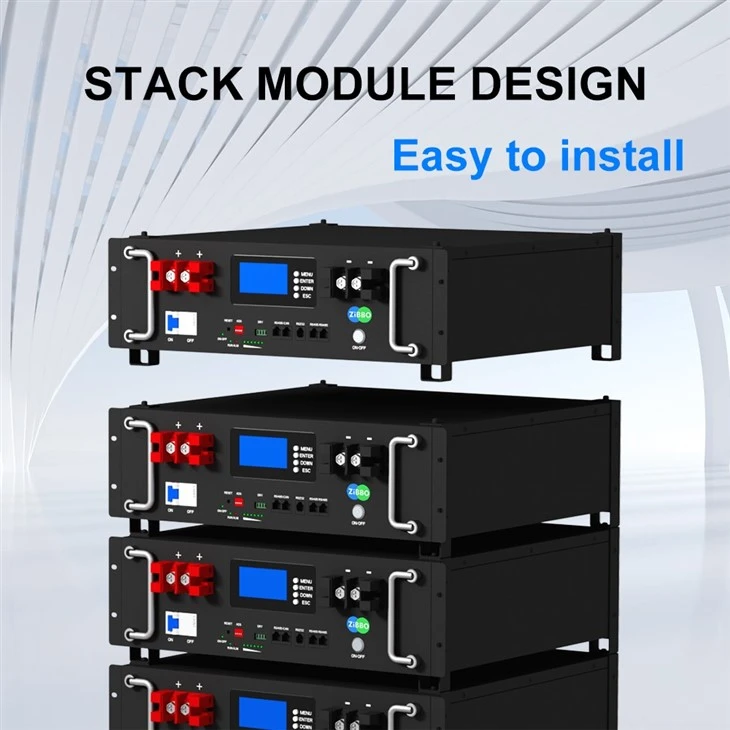

Stackable Module tsim tso cai rau koj kom siv zog nthuav dav koj lub zog cia khoom muaj peev xwm. Txawm hais tias koj yuav tsum tau siv zog me me lossis tag nrho lub tsev, nws cov qauv siv kev txhawb nqa sib txuas, ua rau nws muaj peev xwm yoog tau rau koj cov kev xav tau loj hlob.
Qhov no 15kWh Solar Cell Cov Txheej Txheem Kev Tswj Tsim Hluav Taws Xob (BMS) kom ntseeg tau tias kev ua tau zoo, kev nyab xeeb thiab kev nyab xeeb.



Kev Lom Zem ntawm 3u Xwm Txheej Series

Roj teeb roj teeb tau yooj yim dua, ua kom koj sib txuas nrog cov khoom sib xyaw ua ke, ua kom muaj txiaj ntsig zoo thiab thev naus laus rau koj lub tsev cov kev xav tau.

khoom

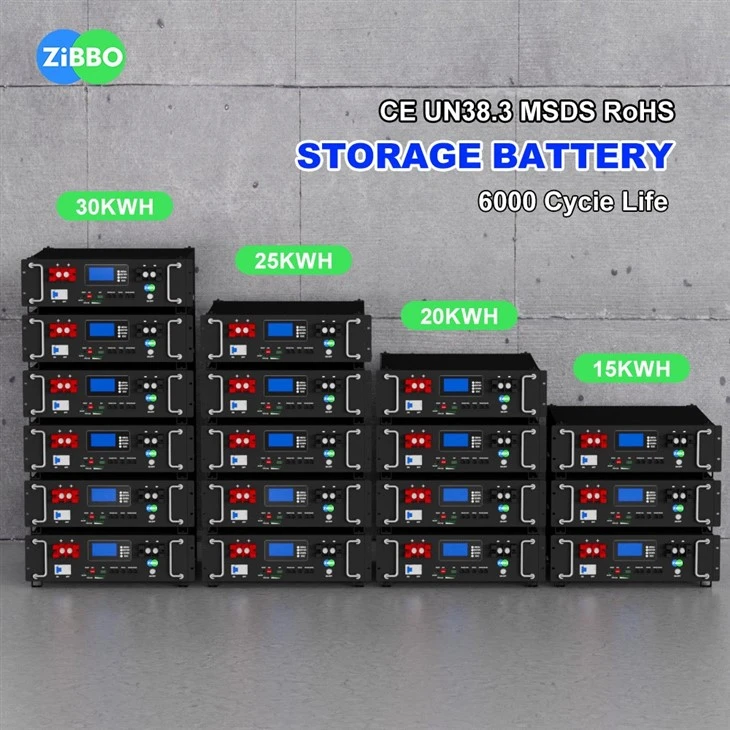

Tus Qauv Qauv	Zb-c -3 u -512300	Zb-c -3 u -512400	Zb-c -3 u -512500	Zb-c -3 u -512600
Qhov hnyav	133.5Kg	178KG	22.5kg	227kg
Tag nrho qhov hnyav	141kg	188KG	235kg	282kg
Kev qhia tshwj xeeb	51,2v 300hah 15.36khov	51.2v 400ah 20.48KWHWH	51.2v 500ah 25.6KWh	51.2v 600ah 30.72kWhwh
Cell Type	LIFEPO4
Muaj pes tsawg	16S1P*3	16S1P*4	16S1P*5	16S1P*6
Ua Haujlwm Voltage Rang	43.2V-57.6V*3	43.2V-57.6V*4	43.2V-57.6V*5	43.2V-57.6V*6
Max them nqi	Max: 50A * 3	Max: 50A * 4	Max: 50A * 5	Max: 50A * 6
Max tso tawm tam sim no	Max: 100A * 3	Max: 100A * 4	Max: 100A * 5	Max: 100A * 6
Tsim Lub Neej	10 xyoo
Mus ib ncig	6000@25 /0.5C/80%DOD
Kev sib txuas lus interface	Rs485, Rs232, tuaj yeem, Wifi (yeem)
Roj teeb loj (wxdxh)	L440 * W430 * H133mm * 3	L440 * W430 * H133mm * 4	L440 * W430 * H133mm * 5	L440 * W430 * H133mm * 6
Ntim qhov loj (WXDXH)	L550 * W540 * H215mm * 3	L550 * W540 * H215mm * 4	L550 * W540 * H215mm * 5	L550 * W540 * H215mm * 6

* Cov ntaub ntawv saum toj no yog los ntawm sab hauv cov txiaj ntsig kev xeem thiab tsis sawv cev cov ntaub ntawv raug.
